Transformador de tensión con fusible JSZY16
JSZY16-10 R
Cantidad
Parámetro técnico
| Relación de tensión nominal (V) | Clase de precisión / Salida secundaria nominal trifásica (VA) | Salida máxima (VA) | Nivel de aislamiento nominal (kV) | Aislamiento del fusible (A) | Esquema de cableado |
3000/√3,100/√3,100/3 | 0.2/6P(3P)-3*20/100 0.5/6P(3P)-3*50/100 1/6P(3P)-3*100/100 3/6P(3P)-3*200/100 0.2/0.2/6P(3P)-3*10/3*10/100 | 3*400 | 3.6/25/40 | 0.5 | Figure 1 |
| 6000/√3,100/√3,100/3 | 3*400 | 7.2/32/60 | 0.5 | Figure 1 | |
| 10000/√3,100/√3,100/3 | 3*400 | 12/42/75 | 0.2 | Figure 1 | |
| 3000/√3,100/√3,100/√3，100/3 | 0.2/0.5/6P(3P)-3*10/3*15/100 0.5/0.5/6P(3P)-3*30/3*30/100 | 3*300/3*300 | 3.6/25/40 | 0.5 | Figure 2 |
| 6000/√3,100/√3,100/√3，100/3 | 3*300/3*300 | 7.2/32/60 | 0.5 | Figure 2 | |
| 10000/√3,100/√3,100/√3，100/3 | 3*300/3*300 | 12/42/75 | 0.2 | Figure 2 |

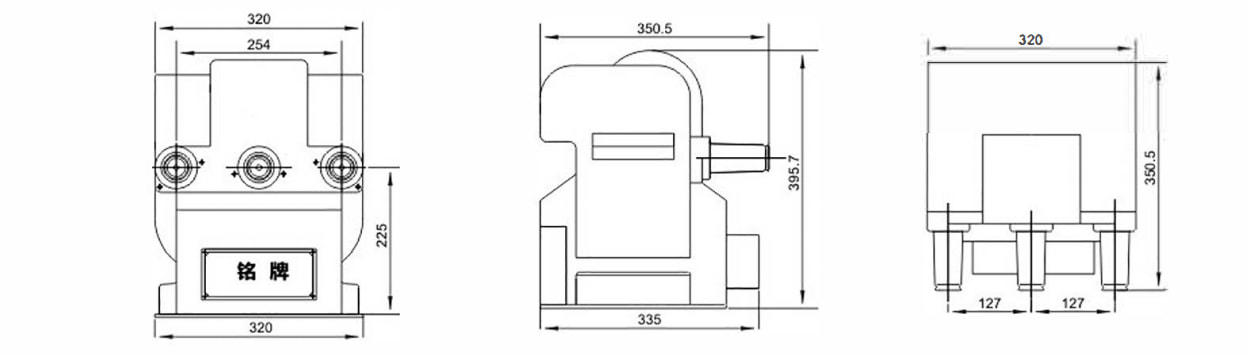

Plano de dimensiones generales

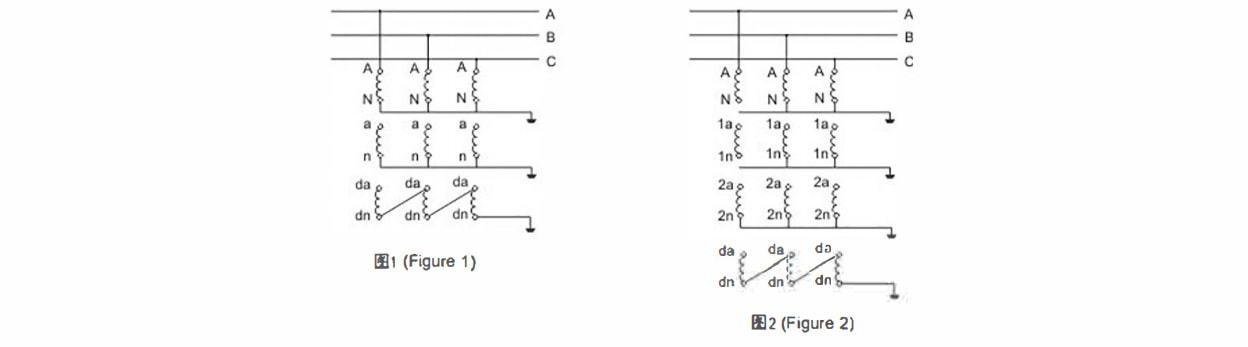

Esquema de cableado
